DUCT PIPES
PVC DUCT PIPE

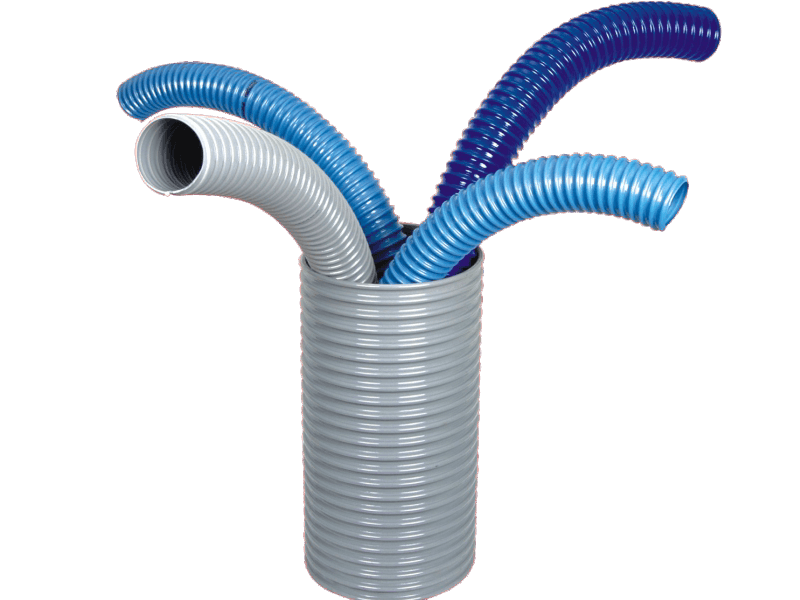

Diamond Duroflex PVC Duct pipes a rigid PVC spiral
reinforcement fused to the soft walls which makes it very flexible,
lightweight & easy to use and install. It has smooth inner walls and is
absolutely maintenance free and proves cost effective in the long term.
Sizes available : 22mm to 250mm
| Diamond Duroflex PVC Duct Pipes are an appropriate choice for blowing air & gases in varied applications like cold & warm air installations, ventilation & heating systems. |
| It can be used as an exhaust system for unwanted fumes from factories and underground installations. |
| Duct pipes can be used for dust collection in domestic vacuum cleaning equipments. |
| Extensively used in carding machines, draw frames in textile industry, cement industry, underground mines and automobile industry etc. |
DUROLON AIR / PNEUMATIC (TRANSPARENT)
| Nominal Size | Inner Diameter" | Outer Diameter | Bending Radius | Standard Length | |
|---|---|---|---|---|---|
| Inches | mm | mm | mm | mm | mtrs |
| ½ | 22 | 21.0 | 28.6 | 35 | 30 |
| 1 | 25 | 25.0 | 32.0 | 45 | 30 |
| 1¾ | 30 | 31.8 | 38.6 | 50 | 30 |
| 1½ | 38 | 38.0 | 45.0 | 55 | 30 |
| 2 | 50 | 50.8 | 57.2 | 65 | 30 |
| 2½ | 60 | 60.5 | 68.5 | 75 | 30 |
| 3 | 75 | 76.5 | 83.5 | 95 | 30 |
| 3¾ | 80 | 80.0 | 89.0 | 100 | 30 |
| 3½ | 90 | 90.5 | 100.0 | 110 | 30 |
| 4 | 100 | 100.2 | 109.0 | 125 | 30 |
| 4½ | 110 | 111.0 | 120.0 | 130 | 30 |
| 5 | 125 | 127.0 | 135.2 | 140 | 15 |
| 5½ | 140 | 142.0 | 152.0 | 160 | 15 |
| 6 | 150 | 152.4 | 161.0 | 205 | 15 |
| 6½ | 160 | 160.0 | 170.0 | 220 | 15 |
| 8 | 200 | 204.0 | 214.0 | 270 | 10 |
| 10 | 250 | 264.0 | 161.0 | 370 | 10 |
